SRC-2 spectral radiance colorimeter
Intelligent, Portable, Accurate, Effective, Minimum visible spectral radiance colorimeter

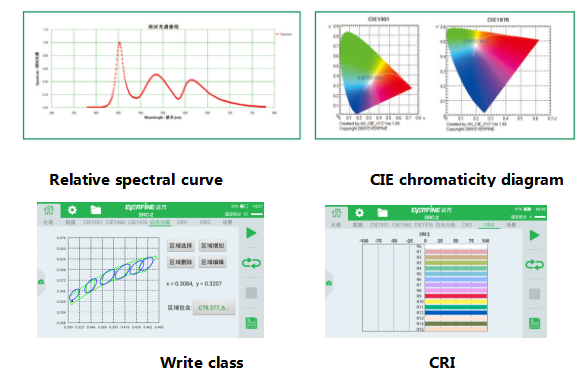

Measurable items: spectral radiance, luminance, relative spectral power distribution, chromaticity coordinates, CCT, CRI and so on. Measurable items covers all the optical-color parameters of the measured objects, which makes machine functional diversification.
Measurable items: spectral radiance, luminance, relative spectral power distribution, chromaticity coordinates, CCT, CRI and so on. Measurable items covers all the optical-color parameters of the measured objects, which makes machine functional diversification.
Main characteristics:
Accurate measurement for spectral radiance, luminance and color and powerful software
Measurable items: spectral radiance, luminance, relative spectral power distribution, chromaticity coordinates, CCT, CRI and so on. Measurable items cover all the optical-color parameters of the measured objects, which makes machine functional diversification.

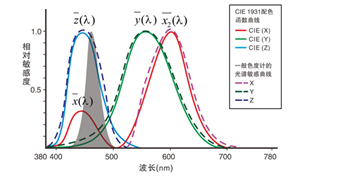

The spectral measurement method avoids the spectral matching error.
Real-time viewfinder measurement avoids personal error.
l Smart and portable with a built-in lithium battery for handheld measurement
l Various data storage and transmission methods
Built-in SD card with large capacity
Equipped with USB, WIFI and Bluetooth(customized) for communication function
Parameter
| Model | SRC-2 spectral radiance colorimeter |
| Wavelength range | 380nm ~ 780nm |
| Wavelength accuracy | ± 0.5nm |
| Luminance accuracy | ± (4% reading +1 words) |
| Chromaticity accuracy（Illuminant A） | + 0.003 |
| Luminance range（Illuminant A） | 0.1cd/m2～20kcd/m2 or 10cd/m2～2,000kcd/m2(Or customized) |
| Minimum measurement distance | 1m |
| Communication interface | Type C |
| Power supply | lithium battery / power adapter |
| Dimension | 180mm x 80mm x 62mm |
| Weight | 560g |
