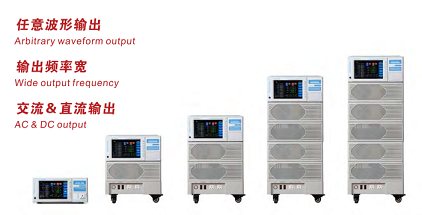

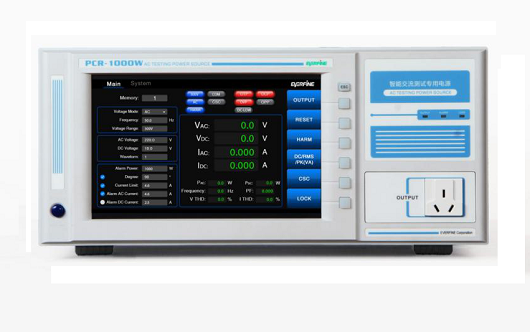

PCR-W Intelligent AC Test Power Supply
Description:
PCR-W series intelligent AC test dedicated power supply is with high quality, it is also with good reliability, high input power factor, high purity of output voltage waveform, low THD of voltage, and light weight, as well as compatible with power supplies all over the world, besides it is a modular design which is convenient for power expansion, etc.
Main characteristics:
◆ Input power factor correction
◆ Compatible with power supplies globally, three output mode: AC, DC, AC and DC
◆ Harmonic analysis function, low harmonic distortion, fast response
◆ Editable waveform (waveform library), editable phase
◆ 3φ power supply composed of three 1 φ power supplies (only interface reserved)
◆ Can be used in parallel (only Interface reserved)
◆ Synchronous input/output port
◆ Synchronous signal output: 5V level
◆ PASS、FAIL、TEST-IN PROCESS Remote output signal: FAIL. PASS, TEST-IN PROCESS
◆ Remote sampling
◆ Source meter integration, voltage true effective value (Vrms), current true effective value (Irms), power (P) and power factor (PF) measurement and displayAchieve the measurement and display of Vrms, Irms, P and PF
◆ Analog input (waveform/amplitude control): DC: -5V~+5V;AC:0~5V
◆ Protection function: output short circuit, over current, over voltage, over power, over heat
◆ Communication function: RS232/485/ ethernet optional
PCR-W series intelligent AC test dedicated power supply is with high quality, it is also with good reliability, high input power factor, high purity of output voltage waveform, low THD of voltage, and light weight, as well as compatible with power supplies all over the world, besides it is a modular design which is convenient for power expansion, etc.
Main characteristics:
◆ Input power factor correction
◆ Compatible with power supplies globally, three output mode: AC, DC, AC and DC
◆ Harmonic analysis function, low harmonic distortion, fast response
◆ Editable waveform (waveform library), editable phase
◆ 3φ power supply composed of three 1 φ power supplies (only interface reserved)
◆ Can be used in parallel (only Interface reserved)
◆ Synchronous input/output port
◆ Synchronous signal output: 5V level
◆ PASS、FAIL、TEST-IN PROCESS Remote output signal: FAIL. PASS, TEST-IN PROCESS
◆ Remote sampling
◆ Source meter integration, voltage true effective value (Vrms), current true effective value (Irms), power (P) and power factor (PF) measurement and displayAchieve the measurement and display of Vrms, Irms, P and PF
◆ Analog input (waveform/amplitude control): DC: -5V~+5V;AC:0~5V
◆ Protection function: output short circuit, over current, over voltage, over power, over heat
◆ Communication function: RS232/485/ ethernet optional

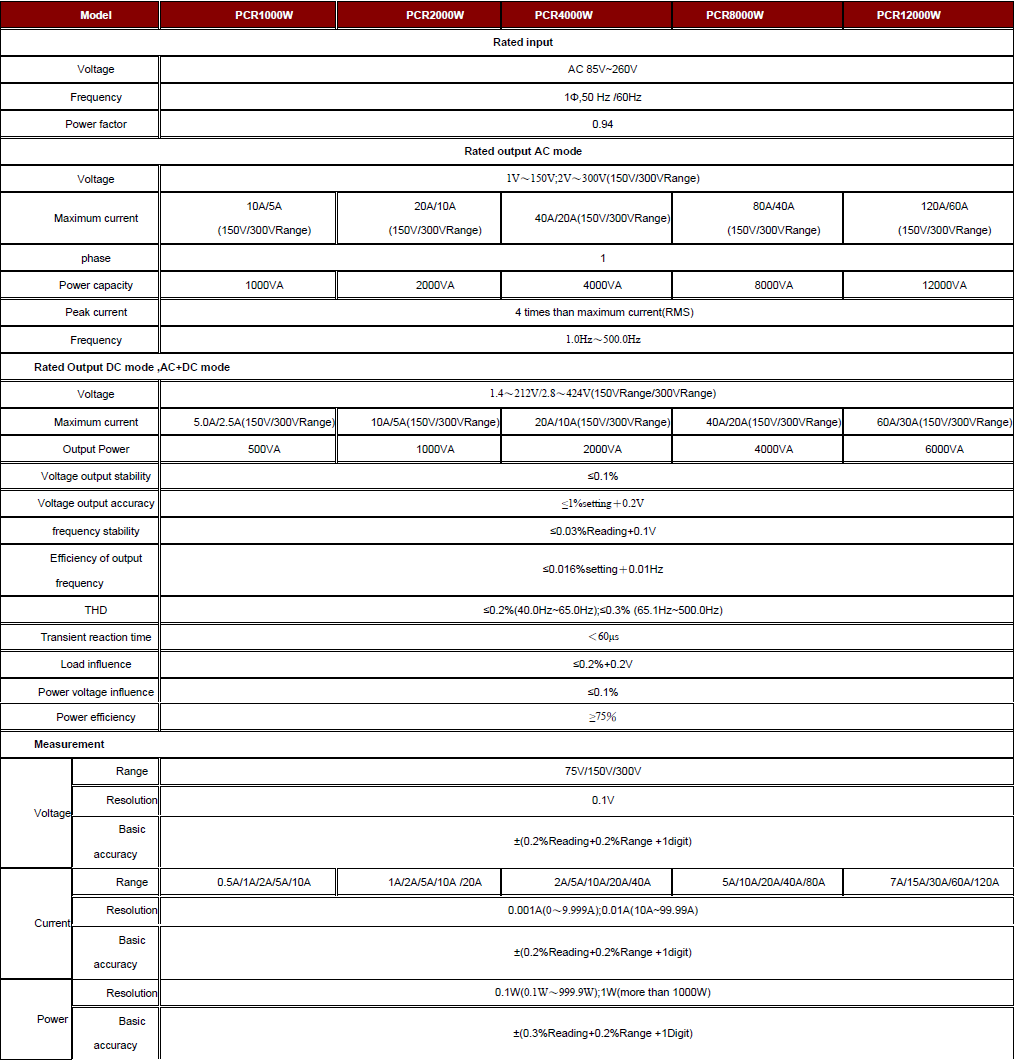

Parameter
