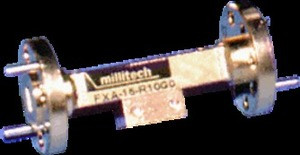

The series FXA general purpose fixed attenuator consists of a waveguide section with a precisely cut resistive vane. It is available in nine waveguide bands from 18 to 170 GHz. The precision fixed attenuators are made using a rugged split block design. This attenuator can be used as a laboratory standard against which other instruments or components are calibrated.
Electrical Specifications:
|
Model (Notes 1,2)
|
FXA-42
|
FXA-28
|
FXA-22
|
FXA-19
|
FXA-15
|
|
Frequency band and range (GHz)
|
K
18-26.5
|
Ka
26.5-40
|
Q
33-50
|
U
40-60
|
V
50-75
|
|
VSWR (max)
|
1.15:1
|
1.15:1
|
1.15:1
|
1.15:1
|
1.15:1
|
|
Power rating (W) (max)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.3
|
|
|
|
Model (Notes 1,2)
|
FXA-12
|
FXA-10
|
FXA-08
|
FXA-06
|
|
|
Frequency band and range (GHz)
|
E
60-90
|
W
75-110
|
F
90-140
|
D
110-170
|
|
|
VSWR (max)
|
1.15:1
|
1.15:1
|
1.20:1
|
1.5:1
|
|
|
Power rating (W) (max)
|
0.3
|
0.3
|
0.3
|
0.3
|
|
1) Specify attenuation level when ordering (40 dB max).
2) High power versions available. Please consult Millitech for details.
|
