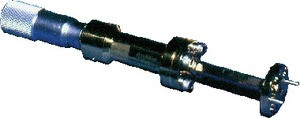

The series TSC tunable short covers 26.5 to 170 GHz in eight waveguide bands. The short consists of a movable non-contacting choke plunger within a waveguide section. The series TSC provides VSWR in excess of 20:1 in WR-28 and 15:1 in WR-06.
Electrical Specifications:
|
Model
|
TSC-42
|
TSC-28
|
TSC-22
|
TSC-19
|
TSC-15
|
|
Frequency band and range (GHz)
|
K
18-26.5
|
Ka
26.5-40
|
Q
33-50
|
U
40-60
|
V
50-75
|
|
VSWR (min)
|
---
|
20:01
|
20:01
|
20:01
|
20:01
|
|
Average power (W) (max)
|
---
|
1
|
0.7
|
0.32
|
0.3
|
|
|
|
|
|
|
|
|
Model
|
TSC-12
|
TSC-10
|
TSC-08
|
TSC-06
|
TSC-05
|
|
Frequency band and range (GHz)
|
E
60-90
|
W
75-110
|
F
90-140
|
D
110-170
|
G
140-220
|
|
VSWR (min)
|
20:01
|
20:01
|
18:01
|
15:01
|
---
|
|
Average power (W) (max)
|
0.3
|
0.2
|
0.1
|
0.1
|
---
|
|
