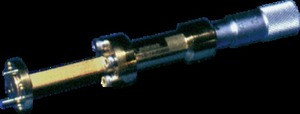

The series TLD tunable load covers 26.5 to 170 GHz in eight waveguide bands. The tunable load consists of a metric micrometer tuning mechanism that allows the microwave absorber to be positioned within the guide while maintaining a constant magnitude of reflection coefficient. This tunable load is designed to provide a typical VSWR ranging from 1.05:1 in WR-28 to 1.1:1 in WR-06.
Electrical Specifications:
|
Model
|
TLD-42
|
TLD-28
|
TLD-22
|
TLD-19
|
TLD-15
|
|
Frequency band and range (GHz)
|
K
18-26.5
|
Ka
26.5-40
|
Q
33-50
|
U
40-60
|
V
50-75
|
|
VSRW (nom)
|
---
|
1.05:1
|
1.05:1
|
1.05:1
|
1.05:1
|
|
Average power (W) (max)
|
---
|
1
|
0.7
|
0.3
|
0.3
|
|
|
|
|
|
|
|
|
Model
|
TLD-12
|
TLD-10
|
TLD-08
|
TLD-06
|
TLD-05
|
|
Frequency band and range (GHz)
|
E
60-90
|
W
75-110
|
F
90-140
|
D
110-170
|
G
140-220
|
|
VSRW (nom)
|
1.05:1
|
1.06:1
|
1.08:1
|
1.1:1
|
---
|
|
Average power (W) (max)
|
0.3
|
0.2
|
0.1
|
0.1
|
---
|
|
