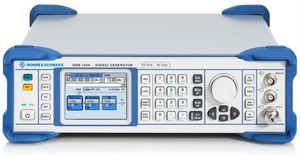

- SMB100A RF and Microwave Signal Generator R&S®
SMB100A RF and Microwave Signal Generator R&S®
Wide frequency range from 9 kHz to 1.1/2.2/3.2/6 GHz or from 100 kHz to 12.75/20/40 GHz
Excellent signal characteristics with low SSB phase noise of typ. –128 dBc (at 1 GHz, 20 kHz offset)
High output power of typ. up to +27 dBm
All important analog modulations with AM, FM/φM and pulse modulation supported
Compact size with only two height units, 3/4 19" width and low weight
編 號：SMB100A
Excellent signal characteristics with low SSB phase noise of typ. –128 dBc (at 1 GHz, 20 kHz offset)
High output power of typ. up to +27 dBm
All important analog modulations with AM, FM/φM and pulse modulation supported
Compact size with only two height units, 3/4 19" width and low weight
編 號：SMB100A
Brief Description
The compact, versatile R&S®SMB100A RF and microwave signal generator with a frequency range up to 40 GHz provides outstanding spectral purity and high output power. In addition, it features easy operation, comprehensive functionality and low cost of ownership.
Specifications
| Frequency | ||
| Frequency range | R&S®SMB-B101 | 9 kHz to 1.1 GHz |
| R&S®SMB-B102 | 9 kHz to 2.2 GHz | |
| R&S®SMB-B103 | 9 kHz to 3.2 GHz | |
| R&S®SMB-B106 | 9 kHz to 6 GHz | |
| R&S®SMB-B112/R&S®SMB-B112L | 100 kHz to 12.75 GHz | |
| R&S®SMB-B120/R&S®SMB-B120L | 100 kHz to 20 GHz | |
| R&S®SMB-B140/R&S®SMB-B140L | 100 kHz to 40 GHz | |
| Setting time | SCPI mode | < 3 ms |
| List mode | < 1 ms | |
| Level | ||
| Maximum output power | R&S®SMB-B101/-B102/-B103/-B106/-B112/-B112L 1 MHz < f ≤ 12.75 GHz |
> +18 dBm |
| R&S®SMB-B120 with R&S®SMB-B31 50 MHz < f ≤ 20 GHz |
> +16 dBm | |
| R&S®SMB-B120L with R&S®SMB-B31 100 MHz < f ≤ 20 GHz |
> +19 dBm | |
| R&S®SMB-B140 with R&S®SMB-B32 50 MHz < f ≤ 40 GHz |
> +13 dBm | |
| R&S®SMB-B140L with R&S®SMB-B32 50 MHz < f ≤ 40 GHz |
> +16 dBm | |
| Minimum specified output power | R&S®SMB-B101/-B102/-B103/-B106 R&S®SMB-B112/-B120/-B140 |
-120 dBm |
| R&S®SMB-B112L | -5 dBm | |
| R&S®SMB-B120L/-B140L | 0 dBm | |
| Setting time (without switching of the mechanical attenuator) |
SCPI mode | < 2.5 ms |
| List mode | < 1 ms | |
| Spectral purity | ||
| SSB phase noise | f = 1 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth |
< –122 dBc, typ. –128 dBc |
| f = 10 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth |
< –102 dBc, typ. –108 dBc |
|
| Supported modulation modes | ||
| AM | standard | |
| AM depth | 0 % to 100 % | |
| FM/φM | standard | |
| Maximum FM deviation | f = 10 GHz | 32 MHz |
| Maximum φM deviation | f = 10 GHz | 320 rad |
| Pulse | R&S®SMB-K21/-K22 pulse modulator | |
| Rise/fall time | < 20 ns, typ. < 5 ns | |
| ON/Off ratio | > 80 dB | |
| Minimum pulse width of pulse generator output |
10 ns | |
| Connectivity | ||
| Remote control | GPIB IEEE-488.2 Ethernet (TCP/IP), USB |
|
| Peripherals | USB |
