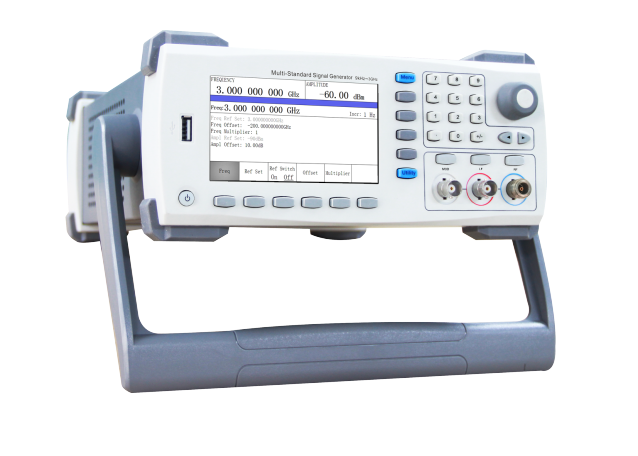

- SG3000系列多制式信號產生器
Product Introduction
SG3000 系列多制式信號發生器擁有優異的性能和便攜特性，兼具了CW 信號、
類比調製、脈衝調製、數位調製、頻率和幅度掃描以及變頻等多種工作模式，適
用于教學科研、產品開發、生產和維修；豐富的邏輯硬體介面和寬屏液晶顯示，
使您便於進行各種控制操作。完備的標準SCPI 命令集和通用USB 及LAN 接口，
為您進行遠端控制和二次開發帶來了極大的便捷。
Product Features
- Frequency Range: 9kHz ~ 1.5GHz/3.0GHz/6.0GHz
- Typical output power from -120dBm to +10dBm
- Supports a variety of general-purpose digital modulation formats, B-type built-in IQ modulator
- Supports various analog modulation AM/FM/ФM, the highest modulation rate of type A can reach 1MHz
- Support pulse modulation, minimum pulse width 100ns
- Supports linear frequency modulation function to simulate radar signal output
- Allow external input IF signal as an upconverter
- Provide internal modulation sources: sine wave, square wave, triangle wave, sawtooth wave
- Standard USB/LAN interface, providing standard SCPI command sets
Technical Secifications
|
Model |
SG3015A |
SG3030A/SG3060A |
SG3030B/SG3060B |
||||||||||
|
Frequency |
|||||||||||||
|
Freq Range |
|
9kHz~1.5GHz |
SG３030A/B：9kHz~3.0GHz SG３060A/B：9kHz~6.0GHz |
||||||||||
|
Freq Resolution |
|
0.23Hz |
|||||||||||
|
Internal Benchmark |
|
||||||||||||
|
Benchmark Freq |
|
10MHz |
|||||||||||
|
Temp Stability |
|
±0.5ppm（options：±5 ppb） |
|||||||||||
|
Internal Reference Output |
Typical value |
10MHz，+2dBm |
|||||||||||
|
Spectrum Purity |
|||||||||||||
|
Harmonic Wave |
Typical value |
≤-30dBc |
|||||||||||
|
Non-harmonic Wave |
Typical value |
≤-50dBc |
|||||||||||
|
Single Sideband Phase Noise |
f = 300MHz |
-105dBc/Hz@10kHz；-115dBc/Hz@100kHz |
|||||||||||
|
f = 1GHz |
-93dBc/Hz@10kHz；-105dBc/Hz@100kHz |
||||||||||||
|
Amplitude |
|||||||||||||
|
Output power range |
9kHz~500kHz |
-120dBm~0dBm |
|||||||||||
|
500kHz~6GHz |
-120dBm~+10dBm |
||||||||||||
|
Power Accuracy |
|
±1.0dB（Typical value） |
|||||||||||
|
Resolution |
|
0.1dB |
|||||||||||
|
Amplitude/Frequency Scan |
|||||||||||||
|
Sweep Mode |
|
Step scan, list scan |
|||||||||||
|
Trigger Mode |
|
Automatic, external trigger |
|||||||||||
|
Internal Modulation Source (LF) |
|||||||||||||
|
Waveform |
|
Sine wave, square wave, triangle wave, sawtooth wave |
|||||||||||
|
Frequency Range |
Sine wave |
0.1Hz~500kHz |
|||||||||||
|
Triangle wave, sawtooth wave |
0.1Hz~100kHz |
||||||||||||
|
Square wave |
0.1Hz~20kHz |
||||||||||||
|
Modulation |
|||||||||||||
|
Analog modulation (AM/FM/ФM), supporting internal and external modulation sources |
|||||||||||||
|
Amplitude Modulation（AM） |
Modulation depth |
0％~100％ |
0％~100％ |
||||||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||||||
|
Frequency Modulation（FM） |
Maximum frequency offset |
5MHz |
5MHz |
||||||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||||||
|
Phase Modulation（ФM） |
Modulation Phase |
0~360 |
0~360 |
||||||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||||||
|
Digital modulation, supporting internal and external modulation sources |
|||||||||||||
|
IQ Modulator |
|
—— |
Yes |
||||||||||
|
Internal Source |
|
ASK/2FSK/4FSK/8FSK /2PSK/4PSK/8PSK |
Supports current digital modulation |
||||||||||
|
External Source |
|
Modulation sequence |
Arb mode (IQ data) |
||||||||||
|
Modulation Rate |
|
1Hz~1MHz |
10kHz~20MHz |
||||||||||
|
Phase Modulation |
|||||||||||||
|
On-off Ratio |
|
≥ 70dB |
|||||||||||
|
Pulse Period |
|
200ns~160s |
|||||||||||
|
Pulse Width |
|
100ns~85s |
|||||||||||
|
Linear Frequency Modulation |
|||||||||||||
|
Scanning Range |
Max range |
20MHz |
Type B does not support |
||||||||||
|
Scanning Rate |
|
20ns ~ 20ms |
|||||||||||
|
RF Upconversion |
|||||||||||||
|
Input IF Range |
|
25MHz~300MHz |
|||||||||||
|
Input Signal Amplitude |
|
-50dBm ~ 0dBm |
|||||||||||
|
Output Signal Frequency |
|
301MHz~1.5GHz |
SG1030A/B：301MHz~3.0GHz SG1060A/B：301MHz~6.0GHz |
||||||||||
|
Output Signal Amplitude |
|
-120dBm ~ +10dBm |
|||||||||||
