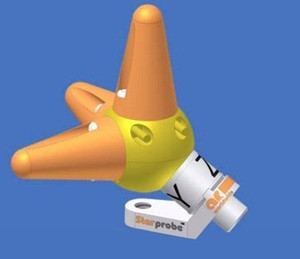

FL 7006 Electric Field Probe
AR Field Probe
歡迎詢問中古買賣~~
編　號：FL 7006
我要詢問
 The FI7000 interface provides both power to and serial communication with the FL7000 series probes. An additional, low-level loop back fiber optic connection is used to sense unexpected disconnect of laser driven fibers to ensure user-safe operation. As an additional safety measure, shuttered connectors are used on all fiber optic connections to and from the probe.
Interfaces........................................................................ IEEE-488 (GPIB)
USB 2.0, Test and Measurement class
RS-232 (19200 Baud)
Fiber Optic Serial (19200 Baud) reserved for connection to FM7004 Field Monitor
Laser Fiber Optic Serial reserved for connection to FL7004 probe
Fiber Optic Connectors ................................................... (2) E2000 compact duplex female for probe communication and safety fiber loop
(2) FSMA for fiber connection to FM7004
Laser ..............................................................................500 mW, 850 nm
Laser shutdown time ........................................................ <1 msec after fiber disconnect
< 250 msec after loss of communication
Power Requirements
Input Voltage ........................................................... 90-260 VAC, 50-60 Hz
Input Current ........................................................... 0.2 - 0.6 A
Input type ................................................................ IEC inlet with filter
Enclosure........................................................................ Desktop case, 2U high; 1 U blank panel installed.
Dimensions (WxHxD)
without enclosure ..................................................... 48.3 x 4.5 x 25.4 cm (19.0 x 1.75 x 10.0 in)
with enclosure .......................................................... 49.8 x 12.7 x 30.5 cm (19.6 x 5.0 x 12.0 in)
Weight
without enclosure ..................................................... 2.5 kg (6.25 lb)
with enclosure .......................................................... 7.25 kg (16 lb)
