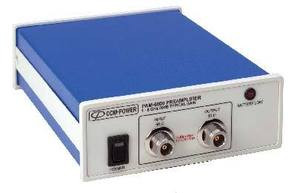

PAM-118A
訊號放大器 1GHZ, 2GHZ, 18GHZ, 40GHZ
編 號：PAM-118A
編 號：PAM-118A
|
Ultra Wideband - 500 MHz to 18 GHz
High Gain - 40 dB minimum
Flat Response - + 1.5 dB
Low Noise Figure - 3 dB max
Pout @ 1 dB Gain Compression - +12 dBm
Specifi cations
Frequency Range 500 MHz to 18 GHz
Gain 40 dB
Gain fl atness + 2.5 dB
RF Input/output Precision N-female, 50Ω
VSWR ( Input/Output) 2.2:1 (max)
Noise Figure <3 dB @ 25oC
Pout @ 1dB comp +12 dBm (min)
DC input 0 Vdc (max)
Reverse isolation 40 dB (typical)
DC Power supply +15Vdc, 500mA
Size 7.7 x 6.5 x 3.2 inches (184 x 156 x 77 mm)
Weight 2.5 lbs (0.9 Kg)
|
