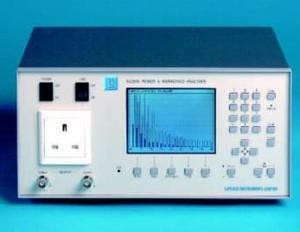

Specification
Performance standards:
IEC61000-3-2 Harmonics analysis.
IEC61000-3-3 Flickermeter.
EN60868 Flicker evaluation.
Mains analyser
Current rating 16A rms continuous, or national
connector rating, whichever is lower
Voltage ranges 115V (±200V pk), 230V (±400V pk)
Current ranges ±24mA to ±400A pk in fifteen ranges
Frequency 45 – 66Hz
Shunt resistance 3mohm
Sampling rate 300 samples per second
Basic accuracy <0.2%
Monitor outputs Re-constructed Voltage and
Current signals
Harmonics analyser
Measurements Fundamental to 40th harmonic
Basic accuracy Better than 5% of limit or 0.2% of selected
range, whichever is the greater
Display modes Numeric readout of parameters
Graphical waveform display with
accumulate and max. hold modes and
class mask. Tabular and histogram
harmonics display with absolute and
percent limit scales
Flickermeter (Option)
Measurements Pst and Plt to EN60868 and IEC61000-3-3
Voltage ranges 115V (±200V pk), 230V (±400V pk)
Current ranges ±24mA to ±400A pk in fifteen ranges
Frequency 45 – 66Hz
Shunt resistance 3mohm
Sampling rate 300 samples per second
General
Display 320 x 240 pixel backlit LCD
Interfaces Parallel printer, RS-232, Optional IEEE488
Instrument supply Separate from EUT supply
230V or 115V ±14%, 48 - 65Hz
Operating range +5 to +40 °C, 20 - 80% RH
Storage range -10 to + 60 °C
Dimensions 305 x 148 x 220mm (W x H x D)
Weight 4.2kg
Safety Complies with EN61010-1
EMC Compliance Complies with EN61326-1
