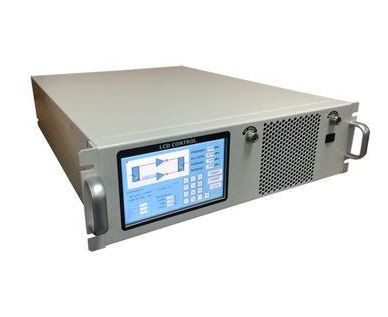

- 5000 – 6000 MHz / 50 Watts S5060BP50
5000 – 6000 MHz / 50 Watts S5060BP50
5000 – 6000 MHz / 50 Watts S5060BP50
5000 – 6000 MHz / 50 Watts S5060BP50
ELECTRICAL SPECIFICATIONS @ 220 VAC, 25°C, 50Ω System
| Parameter Note Specifications | |||||||||||
| Operating Frequency | BW | 5000 – 6000MHz | |||||||||
| Output Power | PSAT | Min. 50Watt | |||||||||
| Power Gain | GP | Typ. 47dB | |||||||||
| Power Gain Flatness | DGP | Max. ±1.5dB | |||||||||
| Input Power for Rated PSAT | PIN | Typ. 0dBm | |||||||||
| Input Impedance | Ω | 50 ohm | |||||||||
| Input VSWR | S11 | Max. -10dB | |||||||||
| Harmonics @ POUT = 50W | 2nd | Har | Typ. -15 dBc | ||||||||
| 3rd | Typ. -15 dBc | ||||||||||
| Third Order Intercept Point | IP3 | Typ. +50 dBm | |||||||||
| Spurious Signal | Spur | Max. -60dBc | |||||||||
| Power Consumption @ Psat | PD | Typ. 700 Watt | |||||||||
| Primary Power | 200-260VAC, 50/60Hz, Single phase | ||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||
| Parameter | Value | Note | |||||||||
| Dimensions, W x D x H | 300 x 400 x 133.5 | mm | |||||||||
| Weight | TBD | kg | |||||||||
| RF Connector Input | Type-N, Female | Front | |||||||||
| RF Connector Output | Type-N, Female | Front | |||||||||
| Cooling | Built-in internal forced air cooling system | - | |||||||||
| ENVIRONMENTAL CHARACTERISTICS | |||||||||||
| Parameter | Symbol | Specifications | Unit | ||||||||
| Operating Ambient Temperature | TA | 0 ~ +50 | °C | ||||||||
| Non-operating Temperature | TSTG | -20 ~ +75 | °C | ||||||||
| PROTECTIONS & LIMITS | |||||||||||
| Parameter | Specifications, Value | Unit | |||||||||
| Input RF drive level without damage | +5 dBm | Max | |||||||||
| Thermal Overload | 65°C shutdown | ||||||||||
