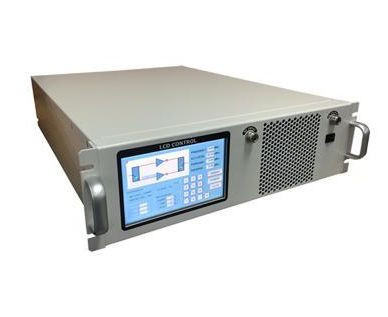

3500 MHz / 200 – 2700 Watts S2735BP200
3500 MHz / 200 – 2700 Watts S2735BP200
我要詢問

3500 MHz / 200 – Watts S2735BP200 2700
ELECTRICAL SPECIFICATIONS @ 220 VAC, 25°C, 50Ω System



Parameter                                          Note                                                Specifications
Operating Frequency BW 2700 – 3500MHz
Output Power PSAT Min. 200Watt
Power Gain GP Typ. 54dB
Power Gain Flatness DGP Max. ±1.5dB
Input Power for Rated PSAT PIN Typ. 0dBm
Gain Adjustment Range VVA Typ. 20dB
Input Impedance Ω 50 ohm
Input VSWR S11 Max. -10dB
Harmonics @ POUT = 200W 2nd Har Typ. -20 dBc
3rd Typ. -10 dBc
Third Order Intercept Point
2-tone IMD @ 48dBm/Tone, Δ = 1MHz		 IMD Typ. -20dBc
Spurious Signal Spur Max. -60dBc
Power Consumption @ Psat PD Typ. 2000 Watt
Primary Power 　 200-260VAC, 50/60Hz, Single phase
MECHANICAL SPECIFICATIONS
Parameter Value Note
Dimensions, W x D x H 441 x 602.5 x 221.5(5U) mm
Weight TBD kg
RF Connector Input Type-N, Female 　
RF Connector Output Type-N, Female 　
Cooling Built-in internal forced air cooling system -
ENVIRONMENTAL CHARACTERISTICS
Parameter Symbol Specifications Unit
Operating Ambient Temperature TA 0 ~ +50 °C
Non-operating Temperature TSTG -20 ~ +75 °C
PROTECTIONS & LIMITS
Parameter Specifications Unit
Input RF drive level without damage +10 dBm Max
Thermal Overload 85°C Graceful Degradation 　
