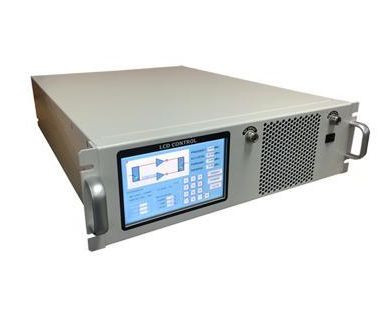

S2527GP500 2500 – 2700 MHz / 500 Watts
ELECTRICAL SPECIFICATIONS @ +28VDC, 25°C, 50Ω System

Parameter                                          Note                                               Specifications
Operating Frequency BW 2500 – 2700MHz
Output Power @ Psat PSAT Min. 500W
Output Power @ P1dB P1dB Typ. 400W
Power Gain Gss Min. 57dB
Power Gain Flatness @ Psat DGP Typ. ±1.0dB
Input Power for Rated PSAT PIN Typ. 0dBm
Input Impedance Ω 50 ohm
Input VSWR S11 Max. -10dB
Harmonics @ POUT = 400W 2nd Har Max. -10 dBc
3rd Max. -10 dBc
Third Order Intercept Point
2-tone IMD @ 50dBm/Tone, Δ = 100KHz		 IP3 Typ. +67 dBm
Spurious Signal Spur Max. -60dBc
Quiescent Current (No RF Input) IDQ Max. 700Watt
Power Consumption @ Psat IDD Max. 3000 Watt



MECHANICAL SPECIFICATIONS
Parameter Value Note
Dimensions, W x D x H 482.6 x 624.5 x 221.5 (5U) mm
Weight TBD kg
RF Connector Input Type-N, Female Rear
RF Connector Output 7/16 DIN, Female Rear
DC Connector MS Connector (MS3102R-24-28P) Rear
Cooling Built-in internal forced air-cooling system -
ENVIRONMENTAL CHARACTERISTICS
Parameter Symbol Specifications Unit
Operating Ambient Temperature TA 0 ~ +50 °C
Non-operating Temperature TSTG -20 ~ +75 °C
PROTECTIONS & FUNCTION
Parameter Value
ALC Auto Level Control
Shut Down Over Power
Over Current
Over Temperature (85℃ Shutdown)
Display Front panel Display: Watts ↔ dBm Power Display, DC Current Display
