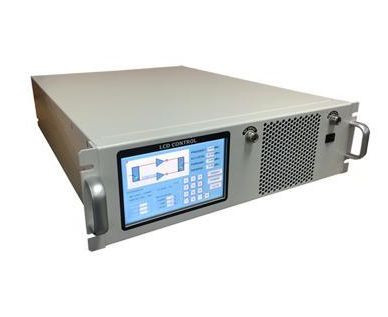

TS2458BBP0.1 2400 – 5800 MHz / 0.1Watts
ELECTRICAL SPECIFICATIONS @ 220 VAC, 25°C, 50Ω System



Parameter                                             Note                                          Specifications
TX Operating Frequency Band 1 BW 2400 - 2480MHz
Band 2 5000 - 5800MHz
Output Power @ P1dB P1dB Typ. 20dBm
Gain @ Pin = -5dBm G Typ. 25dB ± 1dB
Power Gain Flatness @ Pin = -5dBm DGP Max. ±1.0dB
Inter-modulation Distortion
2-tones @ 17dBm/Tone, Δ = 100kHz		 Band 1 OIP3 Typ. 40dBm
Band 2 Typ. 34dBm
Harmonics @ P1dB 2nd Har Typ. -45 dBc
Spurious Signal Spur Typ. -60dBc
RX Operating Frequency Band 1 BW 2400 - 2480MHz
Band 2 5000 - 5800MHz
Output Power @ P1dB P1dB Typ. 10dBm
Gain @ Pin = -5dBm G Typ. 25dB ± 1dB
Power Gain Flatness @ Pin = -5dBm DGP Max. ±1.0dB
Inter-modulation Distortion
2-tones @ 17dBm/Tone, Δ = 100kHz		 OIP3 Typ. 30dBm
Harmonics @ P1dB 2nd Har Typ. -45 dBc
Spurious Signal Spur Typ. -60dBc
Noise Figure NF Max. 6dB
Tx to Rx Isolation ISO Min. 50 dB
Band Isolation Spur Min. 60dBc@between 2.4GHz and 5GHz
Primary Power 　 220VAC, 50/60Hz, Single phase



MECHANICAL SPECIFICATIONS
Parameter Value Note
Dimensions, W x D x H 482.6 x 490 x 88.1 (2U) mm
Weight TBD kg
RF Connector Input Type-N, Female 　
RF Connector Output Type-N, Female 　
TDD Signal Input BNC Female(TTL High for Rx Path) 　
AC Connector ACINLET 　
Cooling Built-in internal forced air cooling system -
LED Display HPA ON – Green
TX On – Green, Rx On - Red		 　



Parameter Symbol Specifications Unit
Operating Ambient Temperature TA 0 ~ +50 °C
Non-operating Temperature TSTG -20 ~ +75 °C
PROTECTIONS & LIMITS
Parameter Specifications, Value Unit
Input RF drive level without damage +5 dBm Max
Thermal Overload 65°C shutdown 　
