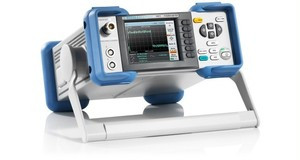

NRP2 Power Meter R&S功率計
Supports all sensor-dependent measurement functions
Expandable to up to four measurement channels
Straightforward numerical and graphical display
Brilliant TFT color display
我要詢問
The compact, robust R&S®NRP2 base unit with color display supports up to four R&S®NRP-Zxx power sensors and all sensor-dependent measurement functions. Measured values are displayed numerically or graphically, depending on the measurement function. The window-based user interface allows simple, intuitive operation; the base unit can be remotely controlled via Ethernet, GPIB or USB.


Specifications

  • Level range: -67 dBm to +45 dBm (sensor dependent)
  • Frequency range: DC to 110 GHz (sensor dependent)
  • Measurement speed: 1500 measurements per second in the buffered mode
  • Linearity uncertainty: 1.5 % (20 to 25 °C, f = 100 MHz to 4 GHz)
