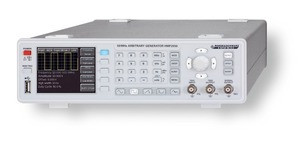

Function Generator 25MHz [50MHz] Arbitrary
Output Voltage 5 mVpp…10 Vpp (into 50 Ω) DC Offset ±5 mV…5 V
編 號:HMF2525 [HMF2550]
Frequency Range 10 μHz…25 MHz [50 MHz]
R Output Voltage 5 mVpp…10 Vpp (into 50 Ω) DC Offset ±5 mV…5 V
R Arbitrary Waveform Generator: 250 MSa/s, 14 Bit, 256 kPts
R Sine, Square, Pulse, Triangle, Ramp, Arbitrary Waveforms
incl. Standard Curves (white Noise, Cardiac etc.)
R Total Harmonic Distortion 0.04 % (f <100 kHz)
R Burst, Sweep, Gating, external Trigger
R Rise Time <8 ns, in Pulse Mode 8…500 ns Variable-Edge-Time
R Pulse Mode: Frequency Range 100 μHz…12.5 MHz [25 MHz],
Pulse Width 15 ns…999 s, Resolution 5 ns
R Modulation Modes AM, FM, PM, PWM, FSK (int. and ext.)
R 10 MHz Timebase: ±1 ppm TCXO, rear I/O BNC Connector
R Front USB Connector: Save and Recall of Waveforms and Settings
R 8.9 cm (3.5") TFT: crisp Representation of the Waveform
and all Parameters
R USB/RS-232 Dual-Interface, optional Ethernet/USB
Dual-Interface or IEEE-488 (GPIB)
