ZVL Vector Network Analyzers R&S網路分析儀
Optional spectrum analysis and digital communications standards
Bidirectional test set for displaying all four S-parameters
R&S®ZVL3-75: 75 Ω vector network analyzer for TV and CATV measurements
Multitrace display for displaying all relevant parameters
Distance-to-fault measurement for detecting cable faults
原產地： 德國
我要詢問

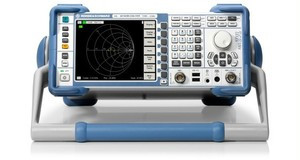

The R&S®ZVL is a cost-efficient, powerful, and portable network analyzer in the compact class, and is therefore ideal for use in development, production, and service. It is the only instrument to combine the functions of a network analyzer, spectrum analyzer, and power meter in a single box, and will thus tremendously increase your work efficiency.



Network Analysis

Frequency range 9 kHz (typ. 5 kHz) to 3 GHz/6 GHz/13.6 GHz
Measurement time (201 test points at 100 kHz IF bandwidth, with normalization calibration)
<50 ms
Data transfer time (201 test points)
  Via RSIB over 100 Mbit/s LAN 1.5 ms
Dynamic range at 10 Hz measurement bandwidth >115 dB, typ. 123 dB
> 95 dB, typ. 100 dB @ 13.6 GHz
Output power range –50 dBm to 0 dBm, typ. –60 dBm to +10 dBm
Measurement bandwidths 10 Hz to 500 kHz in 1/2/5 steps
Trace noise 0.005 dB (rms)
Receiver step attenuators 0 dB to 30 dB
Number of channels, diagrams, traces >1001)
Number of test points per trace 2 to 4001
Operating system Windows XP Embedded
Weight (without battery) <7 kg (15.43 lb)
1) Limited by available RAM capacity




Spectrum Analysis (R&S®ZVL-K1 option)

Frequency range 9 kHz to 3 GHz/6 GHz/13.6 GHz
Frequency uncertainty 1 × 10–6
  With R&S®FSL-B4 option 1 × 10–7
Resolution bandwidths
  Standard 300 Hz to 10 MHz in 1/3 steps, 20 MHz at zero span
  With R&S®FSL-B7 option (1 Hz) 10 Hz to 10 MHz in 1/3 steps
Video bandwidths 10 Hz to 10 MHz
I/Q demodulation bandwidth 20 MHz
SSB phase noise at 500 MHz typ. –103 dBc (1 Hz) at 10 kHz carrier offset
Displayed average noise level
  Without preamplifier at 1 GHz <–140 dBm (1 Hz)
   With preamplifier at 1 GHz <–156 dBm (1 Hz), typ. –163 dBm (1 Hz)
Third-order intercept (TOI) >+5 dBm, typ. +12 dBm
Detectors max/min peak, auto peak, rms, quasi peak, average, sample
Level measurement uncertainty (95% confidence level) <0.5 dB
