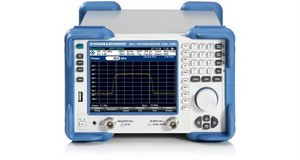

FSC Spectrum Analyzer R&S
Frequency range 9 kHz to 3 GHz or 6 GHz
Resolution bandwidths 10 Hz to 3 MHz
High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1 Hz ))
High third order intercept (> 10 dBm, typ. 15 dBm)
Low measurement uncertainty (< 1 dB)
Internal tracking generator (model .13/.16)
Compact dimensions
Low power consumption (12 W)
編　號：FSC
我要詢問


Specifications

    R&S®FSC3 R&S®FSC6
Frequency range   9 kHz to 3 GHz 9 kHz to 6 GHz
Resolution bandwidth   10 Hz to 3 MHz 10 Hz to 3 MHz
Displayed average
noise level		 without preamplifier, RBW = 1 Hz
  10 MHz to 2 GHz
2 GHz to 3 GHz
3 GHz to 3.6 GHz
3.6 GHz to 5 GHz
5 GHz to 6 GHz		 < –141 dBm, typ. –146 dBm
< –138 dBm, typ. –143 dBm
–
–
–		 < –141 dBm, typ. –146 dBm
< –138 dBm, typ. –143 dBm
< –138 dBm, typ. –143 dBm
< –142 dBm, typ. –146 dBm
< –140 dBm, typ. –144 dBm
  with R&S®FSC-B22 preamplifier option, RBW = 1 Hz
  10 MHz to 1 GHz
1 GHz to 2 GHz
2 GHz to 3 GHz
3 GHz to 5 GHz
5 GHz to 6 GHz		 < –161 dBm, typ. –165 dBm
< –159 dBm, typ. –163 dBm
< –155 dBm, typ. –159 dBm
–
–		 < –161 dBm, typ. –165 dBm
< –159 dBm, typ. –163 dBm
< –155 dBm, typ. –159 dBm
< –155 dBm, typ. –159 dBm
< –151 dBm, typ. –155 dBm
IP3 frequency 1 GHz typ. 15 dBm
Phase noise frequency 500 MHz
  30 kHz carrier offset
100 kHz carrier offset
1 MHz carrier offset		 < –95 dBc (1 Hz)
< –100 dBc (1 Hz)
< –120 dBc (1 Hz)
Detectors   sample, max/min peak, auto peak, RMS
Level measurement
uncertainty		 10 MHz < f ≤ 3.6 GHz
3 GHz < f < 3.6 GHz
3.6 GHz < f ≤ 6 GHz		 < 1 dB, typ. 0.5 dB < 1 dB, typ. 0.5 dB
< 1 dB, typ. 0.5 dB
< 1.5 dB, typ. 1 dB
Tracking generator (model .13/.16)
Frequency range
Output power
Dynamic range
(transmission)
100 kHz < f < 300 kHz
300 kHz < f < 3 GHz
3 GHz < f < 6 GHz		 100 kHz to 3 GHz
0 dBm (nominal)
> 60 dB, typ. 80 dB

> 70 dB, typ. 90 dB
–		 100 kHz to 6 GHz
0 dBm (nominal)
> 60 dB, typ. 80 dB
> 70 dB, typ. 90 dB
> 70 dB, typ. 90 dB
Display   5.7" (14.5 cm) color LCD with VGA resolution
Dimensions (W x H x D) 233 mm × 158 mm × 350 mm (9.2 in × 6.2 in × 13.8 in)
Weight   4.5 kg (9.92 lbs)
