- Directional Coupler 定向耦合器
- 全部產品
- 1-3GHz / 1kW
1-3GHz / 1kW

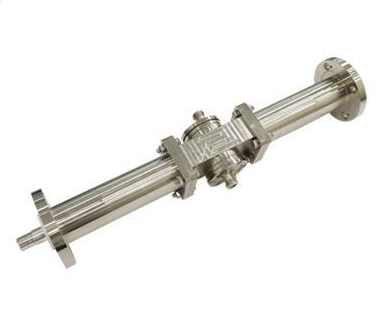

Model: DC1030P1000-40
| 1. Specifications ＞ Electrical Specifications |
|||
| Parameter | Specification | Remark | |
| Frequency Range |
20 ~ 1000MHz | ||
| Insertion Loss | 0.35dB Max. | ||
| VSWR | 1.25:1 Max. | ||
| Coupling Value | 60 ± 1.5dB | ||
| Directivity | 20.0dB Min. | ||
| Power | 1000W Max. | ||
| Impedance | 50ohm | ||
| ＞ Mechanical Specifications | |||
| Parameter | Specification | Remark | |
| RF Connector | Input, Output : N(F) / FWD, REV : SMA(F) | J3/J4 : Coupling Port | |
| Size | 48.1(W) X 63.5(L) X 26.0(H) , excluding Connectors |
unit : mm | |
