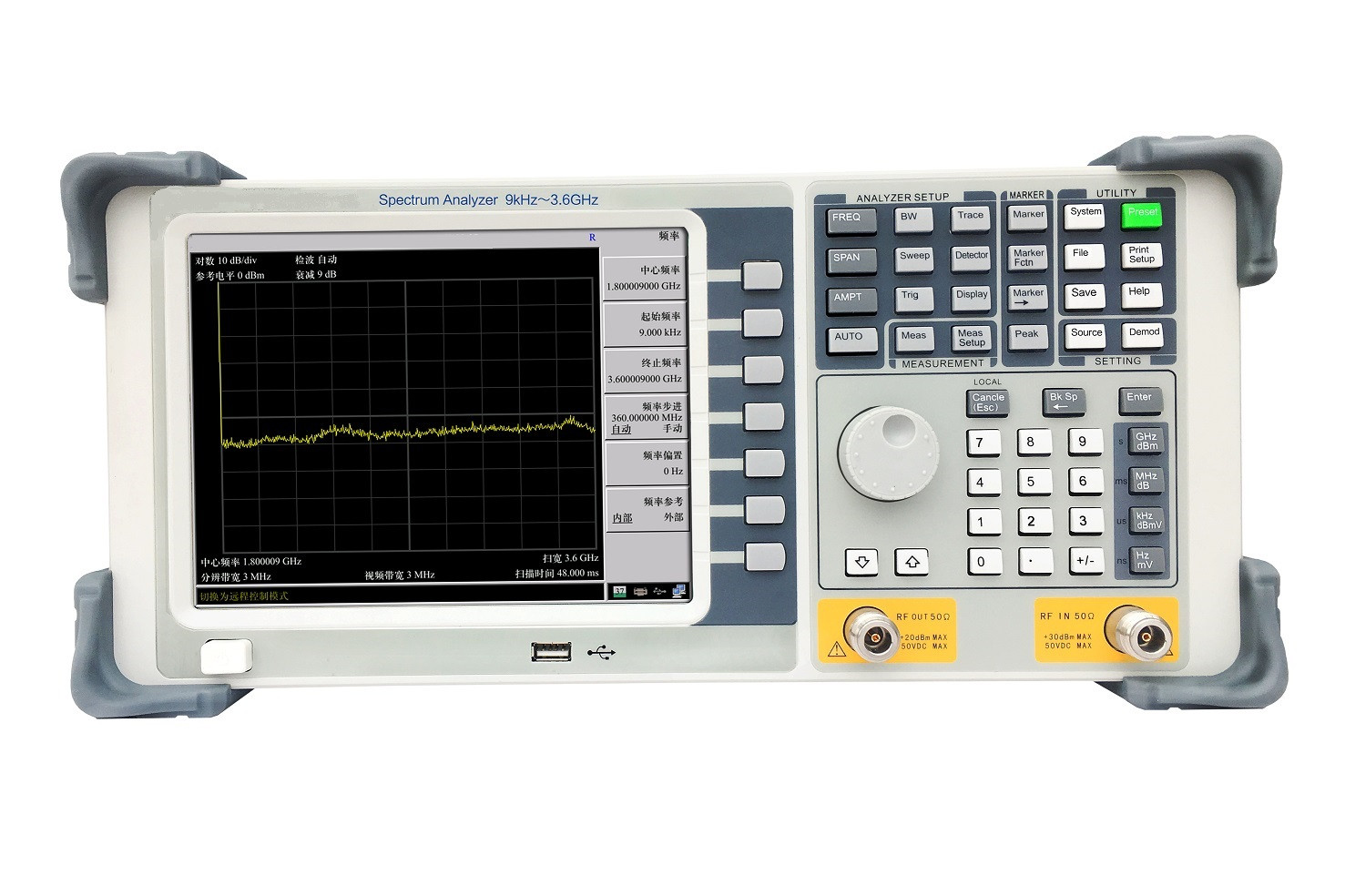

SA3000 頻譜分析儀
The SA3000 series spectrum analyzer adopts the all-aluminum metal structure and 8.4-inch LED backlight high-brightness standard display, which has superior environmental adaptability. All-digital IF and digital phase-locked full scanning technology guarantees outstanding and stable performance. Rich measurement functions, including spectrum analysis, network measurement, field strength measurement, channel scanning, analog demodulation, template alarm settings, and many other intelligent professional features. Products can be widely used in aerospace, microwave communications, satellite navigation, radar detection, electronic detection and countermeasures, precision guidance and other fields.

Product Features

  • Frequency Range1kHz~3.6GHz/7.5GHz
  • Resolution Bandwidth: 1Hz~3MHzoptimum sensitivity beyond -160dBm
  • Patented dual source function, tracking source / independent source arbitrary switching
  • Waterfall spectrummodulate quantity analysisaudio demodulation and other general& extended functions
  • Field strength measurementFreq detection testS11 & S21channel measurementFreq counting and more professional options
  • The LF signal is analyzed by direct mining FFT, and the measurement frequency is as low as 1 kHz.
  • RF front-end has high power and static protection
  • Compact all-metal construction for superior shielding and EMC characteristics



Technical Indicators



Conditions

Preheat for 30 minutes while the instrument is in the calibration cycle and has performed self-calibration

Model

SA3031

SA3031A

SA3070

Frequency Range

9kHz~3.6GHz

1kHz~3.6GHz

9kHz~7.5GHz

Freq Reading Accuracy

±(Freq Reading×Freq reference accuracy+1%×sweep width+10%×RBW+0.5×[sweep width/(scan spot-1)]+1Hz)

Internal Benchmark(10MHz)

Aging Rate

<1ppm/year

Temp Drift

<0.5ppm  (15℃ to 35℃)

Resolution BandwidthRBW



     Range

(<10Hz as options)

1Hz to 500kHz(Continuous stepping from 1 to 10)、1MHz、3MHz



Selectivity

RBW≤500kHz

<5:1 typical value(digital implement,close to Gaussian shape)



(60dB/3dB)







Accuracy

<5%  typical value



Video Bandwidth(VBW)

10Hz to 3MHz



Display Average Noise Level1Hz Resolution BandwidthRF Attenuator 0dB



Sweep Channel

Pre-

amplifier Off

1MHz to 10MHz<-130dBm

10MHz to 1GHz<-135dBm

 1GHz to3.6GHz<-130dBm

1MHz to 10MHz<-130dBm

10MHz to 1GHz<-135dBm

1GHz to 3.6GHz<-130dBm

1MHz to 10MHz<-125dBm

10MHz to 2GHz<-133dBm

2GHz to 3.4GHz<-130dBm

3.4GHz to 5GHz<-133dBm

5GHz to 7.5GHz<-127dBm

Pre-

amplifier

On

1MHz to 10MHz<-150dBm

10MHz to 1GHz<-155dBm

1GHz to 3.6GHz<-150dBm

1MHz to 10MHz<-150dBm

10MHz to 1GHz<-155dBm

1GHz to 3.6GHz<-150dBm

1MHz to 10MHz<-140dBm

10MHz to 2GHz<-148dBm

2GHz to 3.4GHz<-143dBm

3.4GHz to 5GHz<-145dBm

5GHz to 7.5GHz<-138dBm

Straight Mining Channel



2kHz to 5kHz<-110dBm

5kHz to 10kHz<-120dBm

10kHz to 10MHz<-130dBm



Phase Noise



fc=500MHz

Frequency offset 30kHz -90dBc/Hz

Frequency offset 30kHz   -80dBc/Hz



Frequency offset 100kHz -100dBc/Hz

Frequency offset 100kHz  -90dBc/Hz



Frequency offset 1MHz  -110dBc/Hz

Frequency offset 1MHz  -110dBc/Hz



Note:typical fc=500MHz RBW≤1kHz,sampling detection,average traces≥10



Sweep Time



Non-Zero Sweep Width

3ms to 3000s



Zero Sweep Width

1ms to 3000s



Sweep Mode

Continuous, single



Trigger



Trigger Source

Free, video, external



External Trigger Level

5V TTL level,nominal value



Frequency Counter





Count Resolution

1Hz、10Hz、100Hz、1kHz



Counter Uncertainty

Freq reading×Freq reference accuracy+ counting resolution



Amplitude Accuracy(20℃ to 30℃)



Comprehensive Amplitude Accuracy(90%)

Input signal range 0dBm to -50dBm

±1.5dB



Amplitude



Measurement Range

 fc≥10MHz

Display average noise level to +27dBm

Display average noise level to +20dBm



Maximum Safe Input Level

Average Continuous Power

+27dBm

Average Continuous Power

+37dBm

Average Continuous Power

+23dBm



Maximum DC Input Voltage

 50Vdc

 50Vdc



Input Attenuator Range

0 to 39dB,stepping as 3dB

0 to 30dB,stepping as 1dB



1dB Compression Spot

+7dBm

+10dBm



Spurious and Residual Response



TOI(Third-Order Distortion)

>30MHz

+10dBm

>30MHz

+13dBm



SHI(Second-Order Distortion)

>10MHz

+30dBm

+40dBm



Input Related Spurious Signals

<-60dBc

<-60dBc



Residual Response

<-85dBm

<-95dBm

<-85dBm



Track Signal Source(Options)



Frequency Range

100kHz to 3.6GHz

100kHz to 3.2GHz



Output Power

-30dBm  to  0dBm  1dB stepping

-30dBm to 0dBm  1dB stepping



Output Flatness

Track source(100kHz to 3.6GHz) ±3dB

Track source(100kHz to 3.2GHz)±3dB



Track source(150MHz to 3.6GHz) ±3dB





Input/ Output



RF Input/ Output

N-type Negative(50Ω)



USB

Device port:USB 1.1  B connector  Host port:USB 2.0  A connector



LAN

10/100 Base-T,RJ-45 connector



RS232

9-pin D-SUB(positive)



Reference Input/ Output

10MHz,BNC negative

Input power 0dBm to +10dBm



Output power 0dBm ±2dB



VGA

800*600,60Hz,15-pin D-SUB(negative)



External Trigger Input

5V TTL level(±10V,100mA maximum)



FM/AM Audio Demodulation

Earphone jack



Common Parameters



Display

LED backlight,8.4-inch TFT-LCD



Maximum Weight

6.5kg



Size(No feet)

390(W)×182(H)×230(D)mm



Working Temperature

0℃ to 40℃



Storage Temperature

-30℃ to +70℃



Power Supply

Input Voltage Range

100V to 240V



AC Freq Range

40Hz to 60Hz



Power Consumption

Maximum 30W
