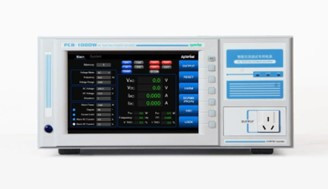

- SWG-3000 頻閃測試專用電源
主要特點 Main Characteristics
- 完全滿足 IEC 61547-1 對照明產品的輸入電壓波形要求，內置標準電壓波形庫。
- Fully comply with requirement of IEC 61547-1 for Temperal light Modulation(TLM), voltage waveform library inside.
- 波形可編輯，相位可編輯，任意波形輸入。Editable waveform, editable phase, arbitrary waveform input.
- 可導入 CSV 資料檔案，複現照明現場電壓波形，還原現場頻閃效果。
- Import CSV data file, reproduce the voltage waveform and flicker effect at the lighting scene.
頻閃測試軟體介面：
|
Rated input |
||
|
Voltage |
AC 85V~260V |
|
|
Frequency |
1Φ，50 Hz /60Hz |
|
|
Power factor |
（1） |
0.94 |
|
Rated output AC mode |
||
|
Voltage |
1V～150V；2V～300V（150V/300VRange） |
|
|
Output voltage response time |
≤ 50μs |
|
|
Maximum Current |
（2） |
10A/5A （150V/300VRange） |
|
Phase number |
1 |
|
|
Power capacity |
1000VA |
|
|
Current crest factor |
（3） |
10 |
|
Frequency |
1.0Hz～500.0Hz |
|
|
Rated output DC mode, AC+DC |
||
|
Voltage |
1.4~212V/2.8~424V（150VRange/300VRange） |
|
|
Maximum Current |
（2） |
5A/2.5A（150V/300VRange） |
|
Power capacity |
1000VA |
|
|
Voltage stability |
≤0.1% |
||
|
Voltage output accuracy |
≤1%Setting＋0.2V |
||
|
Frequency stability |
≤0.03%Reading+0.1V |
||
|
Output frequency accuracy |
≤0.016%Setting＋0.01Hz |
||
|
Total voltage distortion |
（4） |
≤0.2%（40.0Hz~65.0Hz）；≤0.3% （65.1Hz~500.0Hz） |
|
|
Transient response time |
＜ 60μs |
||
|
Load effect |
（5） |
≤ 0.2% + 0.2V |
|
|
Source voltage effect |
≤ 0.1% |
||
|
Power efficiency |
（1） |
≥ 75％ |
|
|
Measurement |
|||
|
Voltage |
Range |
75V/150V/300V |
|
|
Resolution |
0.1V |
||
|
Basic Accuracy |
DC：±（0.2% Reading + 0.2% Range + 1 Byte） 1≤f<10Hz：±（0.5% Reading + 0.3% Range + 1 Byte） 10≤f<45Hz：±（0.3% Reading + 0.2% Range +1 Byte） 45≤f<65Hz：±（0.2% Reading + 0.1% Range +1 Byte） 65≤f≤500Hz：±（0.3% Reading + 0.2% Range +1 Byte） |
||
|
Current |
Range |
0.5A/1A/2A/5A/10A |
|
|
Resolution ratio |
0.001A（0～9.999A）；0.01A（10A~99.99A） |
||
|
Basic Accuracy |
DC：±（0.2% Reading + 0.2% Range + 1 Byte） 1≤f<10Hz：±（0.5% Reading + 0.3% Range +1 Byte） 10≤f<45Hz：±（0.3% Reading + 0.2% Range +1 Byte） 45≤f<65Hz：±（0.2% Reading + 0.1% Range +1 Byte） 65≤f≤500Hz：±（0.3% Reading + 0.2% Range +1 Byte） |
||
|
Power |
Resolution ratio |
0.1W（0.1W～999.9W）；1W（>1000W） |
|
|
Basic Accuracy |
DC：±（0.3% Reading + 0.3% Range + 1 Byte） 1≤f<10Hz：±（0.5% Reading + 0.5% Range + 1 Byte） 10≤f<45Hz：±（0.3% Reading + 0.3% Range +1 Byte） 45≤f<65Hz：±（0.3% Reading + 0.2% Range +1 Byte） 65≤f≤500Hz：±（0.3% Reading + 0.3% Range +1 Byte） |
||
|
General characteristics |
|||
|
Remote output signal |
Test pass, test failure, test |
||
|
Sync signal output |
Output 5V level |
|
Protective function |
Short circuit, over current, over voltage, over power, overheat |
|
Interface |
RS232/internet access, USB (optional), Remote sampling； |
|
Analog input |
DC：-5V ~ + 5V AC：0 ~ 5V |
|
Working condition |
0℃～40℃, ≤ 75% R.H. |
|
Insulation resistance |
≥10MΩ.500VDC（Power input terminals are aligned to the housing） |
|
Dimension |
430 × 206 × 500（W × H × D）(mm) |
|
Weight（kg） |
17 |
Tips:
- Input Voltage：90V~260V, Output full load, pure resistance load, output frequency 40~500Hz
- When output Voltage is 1~110V/2~220V(AC model）, 100V~242V/200V~424V (DC model), the current shall be used by derating, and the curves are shown in figure
2.1 and figure 2.2. When the output frequency is 1~40Hz, the Current curve is shown in figure 2.3.
- Effective value ≤ rated current
- When output voltage 80V~150V/160V~300V，load Power factor is 1
- When remote sampling is used：≤1% + 0.1V。
